Bently Nevada 132417-01 190662-26 Product Overview
The Bently Nevada 132417-01 190662-26 is a high-performance vibration monitoring module designed for industrial machinery protection and condition monitoring. It is part of Bently Nevada’s 3500/42M Proximitor Monitor series, which is widely used in critical applications such as turbines, compressors, and pumps. This module provides reliable and accurate vibration measurements, ensuring optimal machinery health and preventing unexpected failures.
Product Advantages
- High Accuracy: Delivers precise vibration measurements with minimal signal distortion.
- Robust Construction: Built to withstand harsh industrial environments, including high temperatures and electromagnetic interference.
- Easy Integration: Compatible with Bently Nevada’s 3500 monitoring system for seamless data acquisition and analysis.
- Advanced Diagnostics: Features self-diagnostic capabilities to ensure consistent performance.
- Long-Term Reliability: Designed for extended operational life with minimal maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 132417-01 190662-26 |
| Dimensions (LxWxH) | 241 x 24.4 x 99.1 mm |
| Weight | 0.45 kg |
| Operating Voltage | 18-30 VDC |
| Input Signal | Proximitor probe input (mV/mm) |
| Output Signal | 4-20 mA, RS-485 (Modbus) |
| Frequency Range | 0.5 Hz to 10 kHz |
| Temperature Range | -40°C to +85°C |
| Protection Rating | IP67 |
Applications
The Bently Nevada 132417-01 190662-26 is used in various industries, including:
- Oil & Gas: Monitoring turbines and compressors.
- Power Generation: Protecting steam and gas turbines.
- Chemical Processing: Ensuring reliability of rotating equipment.
- Mining & Metals: Vibration analysis for heavy machinery.
Compatible Models
This module is typically used alongside the following Bently Nevada components:
- 3500/22M Transient Data Interface
- 3500/15 Power Supply Module
- 3300 XL Proximitor Probes
- 3500/92 Communication Gateway
Installation Instructions
- Mounting: Secure the module in a vibration-free, dry location using the provided mounting brackets.
- Wiring: Connect the proximitor probe to the designated input terminals and ensure proper grounding.
- Power Supply: Verify voltage compatibility (18-30 VDC) before energizing.
- Calibration: Use Bently Nevada’s configuration software to calibrate the module for accurate readings.
- Testing: Perform a functional test to confirm signal integrity and communication.
Recommended Related Models (Same Series)
| Model Number | Description | Dimensions | Weight | Voltage |
|---|---|---|---|---|
| 3500/42M-01-00 | Enhanced Vibration Monitor | 150x75x45 mm | 0.5 kg | 18-30 VDC |
| 3500/42M-02-00 | Dual-Channel Vibration Monitor | 150x75x45 mm | 0.6 kg | 18-30 VDC |
| 3500/45M-01-00 | High-Temp Vibration Monitor | 160x80x50 mm | 0.7 kg | 18-30 VDC |
| 3500/40M-01-00 | Basic Vibration Monitor | 140x70x40 mm | 0.4 kg | 18-30 VDC |
| 3500/44M-01-00 | 4-Channel Vibration Monitor | 170x85x55 mm | 0.8 kg | 18-30 VDC |
| 3500/46M-01-00 | Explosion-Proof Vibration Monitor | 180x90x60 mm | 1.0 kg | 18-30 VDC |
Popular Bently Nevada Models (Other Series)
| Model Number | Description | Dimensions | Weight | Voltage |
|---|---|---|---|---|
| 3300 XL 8mm Proximitor | Eddy Current Proximity Probe | 80x20x20 mm | 0.2 kg | -18 to -24 VDC |
| 3500/22M-01-00 | Transient Data Interface Module | 150x75x45 mm | 0.5 kg | 18-30 VDC |
| 3500/92-01-00 | Communication Gateway | 160x80x50 mm | 0.7 kg | 18-30 VDC |
| 3300/16-11-01-00 | Accelerometer Module | 120x60x30 mm | 0.3 kg | 18-30 VDC |
| 3500/15-01-00 | Power Supply Module | 140x70x40 mm | 0.6 kg | 90-265 VAC |
| 3300/25-02-00 | Speed Sensor Module | 100x50x25 mm | 0.2 kg | 18-30 VDC |
| 3500/32-01-00 | Relay Module | 150x75x45 mm | 0.5 kg | 18-30 VDC |
| 3300/45-01-00 | Temperature Monitor Module | 130x65x35 mm | 0.4 kg | 18-30 VDC |
FAQ (Frequently Asked Questions)
Q1: What is the operating temperature range of the 132417-01 190662-26?
A1: The module operates within -40°C to +85°C, making it suitable for extreme environments.
Q2: Can this module be used with non-Bently Nevada probes?
A2: No, it is optimized for use with Bently Nevada 3300 XL Proximitor Probes for accurate readings.
Q3: What communication protocols are supported?
A3: It supports 4-20 mA analog output and RS-485 (Modbus) for data transmission.
Q4: Is calibration required after installation?
A4: Yes, calibration using Bently Nevada’s configuration software is recommended for optimal performance.
Q5: What is the IP rating of this module?
A5: It has an IP67 rating, ensuring dust and water resistance.
Q6: Can this module be used in hazardous areas?
A6: No, for hazardous environments, consider the 3500/46M-01-00 (explosion-proof) variant.

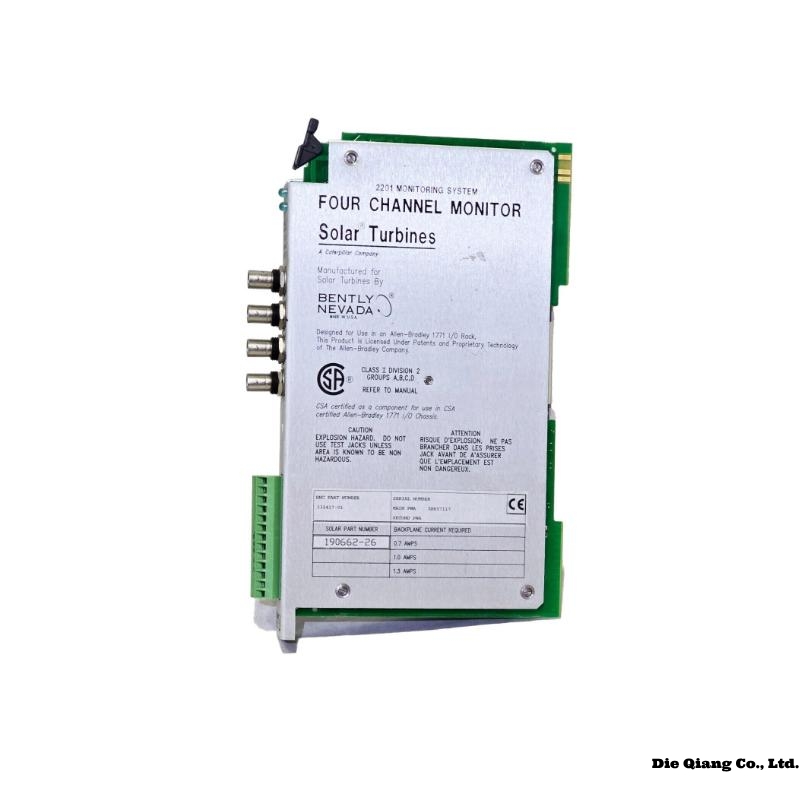

Bently Nevada 132417-01 190662-26 Four Channel 2201 Monitoring System I/O Module
