Bently Nevada 21504-000-012-05-02 Product Overview
The Bently Nevada 21504-000-012-05-02 is a high-performance vibration monitoring transducer designed for industrial machinery protection and condition monitoring. It is part of Bently Nevada’s extensive portfolio of reliability solutions, widely used in oil & gas, power generation, and heavy industries.
This transducer provides accurate vibration measurements, enabling early fault detection and preventing catastrophic equipment failures. Its robust construction ensures reliability in harsh environments.
Product Advantages
- High Accuracy – Delivers precise vibration data for critical machinery.
- Durability – Built to withstand extreme temperatures, moisture, and corrosive environments.
- Easy Integration – Compatible with Bently Nevada’s monitoring systems for seamless data collection.
- Long Service Life – Engineered for minimal maintenance and long-term reliability.
- Wide Application Range – Suitable for turbines, compressors, pumps, and motors.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 21504-000-012-05-02 |
| Measurement Type | Vibration (Velocity/Displacement) |
| Output Signal | 4-20 mA (Loop Powered) |
| Voltage Range | 18-30 VDC |
| Frequency Range | 10 Hz – 1 kHz |
| Operating Temp. | -40°C to +85°C (-40°F to +185°F) |
| Enclosure Rating | IP67 (Dust & Waterproof) |
| Cable length | 3 m |
| Weight | 0.75 kg |
| Mounting | Threaded Stud or Magnetic Base |
| Compliance | ATEX, IECEx (Hazardous Areas) |
Applications
- Gas & Steam Turbines – Monitors blade passing and imbalance.
- Centrifugal Compressors – Detects misalignment and bearing wear.
- Pumps & Motors – Identifies cavitation and mechanical looseness.
- Fans & Blowers – Tracks vibration levels for predictive maintenance.
Compatible Models (Recommended Pairings)
- Bently Nevada 3500/42M – Vibration Monitor (4-channel).
- Bently Nevada 3300/16 – Proximity Transducer System.
- Bently Nevada 1900/65A – Signal Conditioner.
- Bently Nevada 2300/25 – Temperature Monitor.
- Bently Nevada 3701/46 – Accelerometer.
- Bently Nevada 3300/26 – Shaft Displacement Sensor.
Installation Instructions
- Mounting – Secure the transducer using the provided threaded stud or magnetic base.
- Wiring – Connect the 4-20 mA output to the monitoring system (shielded cable recommended).
- Calibration – Verify signal output using a calibrated vibration source.
- Testing – Perform a bump test to ensure proper response.
- Environmental Protection – Ensure seals are intact for IP67 compliance.
Recommended Similar Models (Same Series)
| Model | Type | Voltage | Frequency Range | Dimensions | Weight |
|---|---|---|---|---|---|
| 21504-000-012-05-01 | Vibration Transducer | 18-30 VDC | 5 Hz – 2 kHz | 120x80x60 mm | 450 g |
| 21504-000-012-05-03 | High-Temp Version | 18-30 VDC | 10 Hz – 1.5 kHz | 120x80x60 mm | 470 g |
| 21504-000-012-10-02 | Explosion-Proof | 18-30 VDC | 10 Hz – 1 kHz | 130x85x65 mm | 500 g |
| 21504-000-015-05-02 | Low-Frequency Model | 18-30 VDC | 2 Hz – 500 Hz | 120x80x60 mm | 450 g |
| 21504-000-020-05-02 | High-Sensitivity | 18-30 VDC | 10 Hz – 1 kHz | 120x80x60 mm | 460 g |
| 21504-000-030-05-02 | Wireless Option | 24 VDC | 10 Hz – 1 kHz | 125x85x65 mm | 480 g |
Top 8 Popular Bently Nevada Models
| Model | Type | Voltage | Frequency | Dimensions | Weight |
|---|---|---|---|---|---|
| 3300 XL 5mm | Proximity Probe | -18 to -24 VDC | 0-15 kHz | 8mm Diameter | 100 g |
| 3500/42M | Vibration Monitor | 24 VDC | 0.5-10 kHz | 160x120x80 mm | 1.2 kg |
| 1900/65A | Signal Conditioner | 115/230 VAC | DC-10 kHz | 90x70x50 mm | 300 g |
| 2300/25 | Temperature Monitor | 24 VDC | N/A | 100x80x60 mm | 400 g |
| 3701/46 | Accelerometer | 18-30 VDC | 1 Hz-10 kHz | 30x30x20 mm | 150 g |
| 3300/16 | Proximity Transducer | -18 to -24 VDC | 0-15 kHz | 60x40x30 mm | 200 g |
| 2600T | Pressure Transmitter | 12-36 VDC | N/A | 120×60 mm | 350 g |
| 3500/22M | Tachometer Module | 24 VDC | 0-30,000 RPM | 160x120x80 mm | 1.1 kg |
Frequently Asked Questions (Q&A)
Q1: What is the operating voltage range for the 21504-000-012-05-02?
A1: It operates on 18-30 VDC.
Q2: Can this sensor be used in hazardous areas?
A2: Yes, it is ATEX/IECEx certified for hazardous environments.
Q3: What is the frequency response range?
A3: 10 Hz to 1 kHz.
Q4: How should the transducer be mounted?
A4: It can be mounted via threaded stud or magnetic base.
Q5: Is calibration required after installation?
A5: Yes, a bump test or signal verification is recommended.
Q6: What is the IP rating?
A6: It has an IP67 rating (dustproof and waterproof).

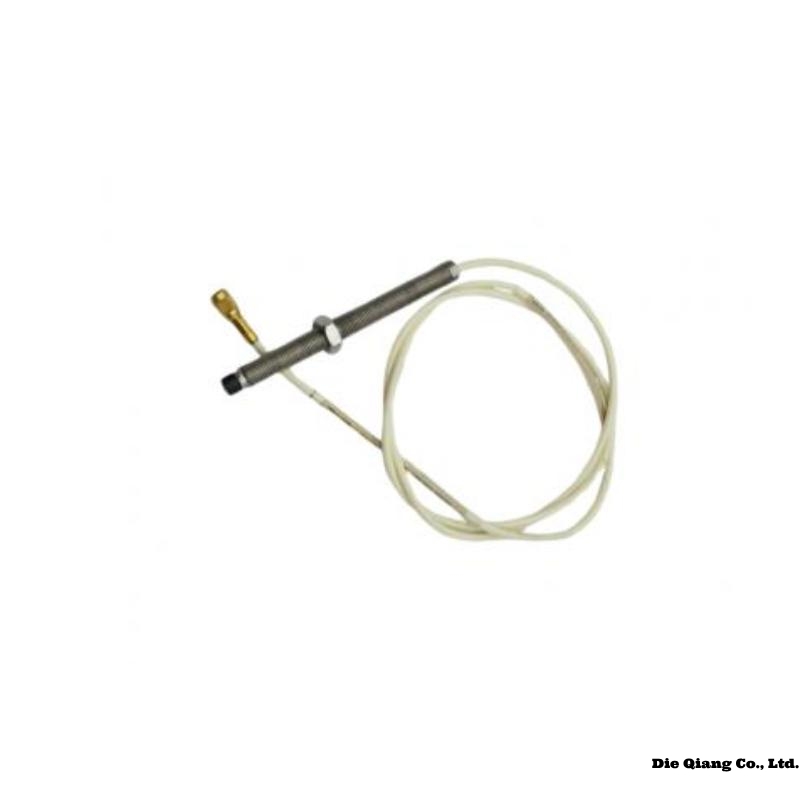

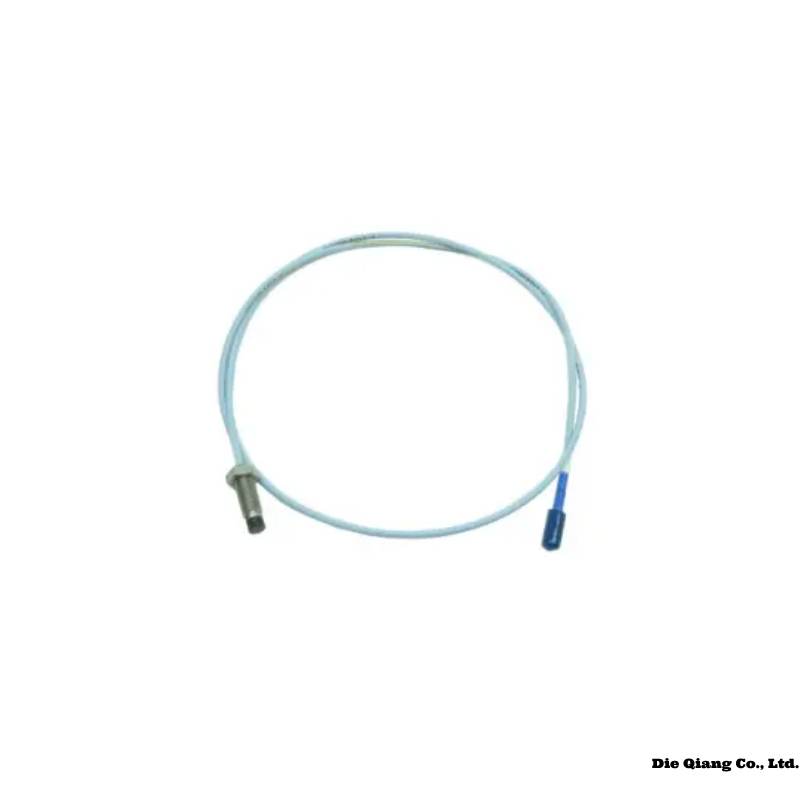

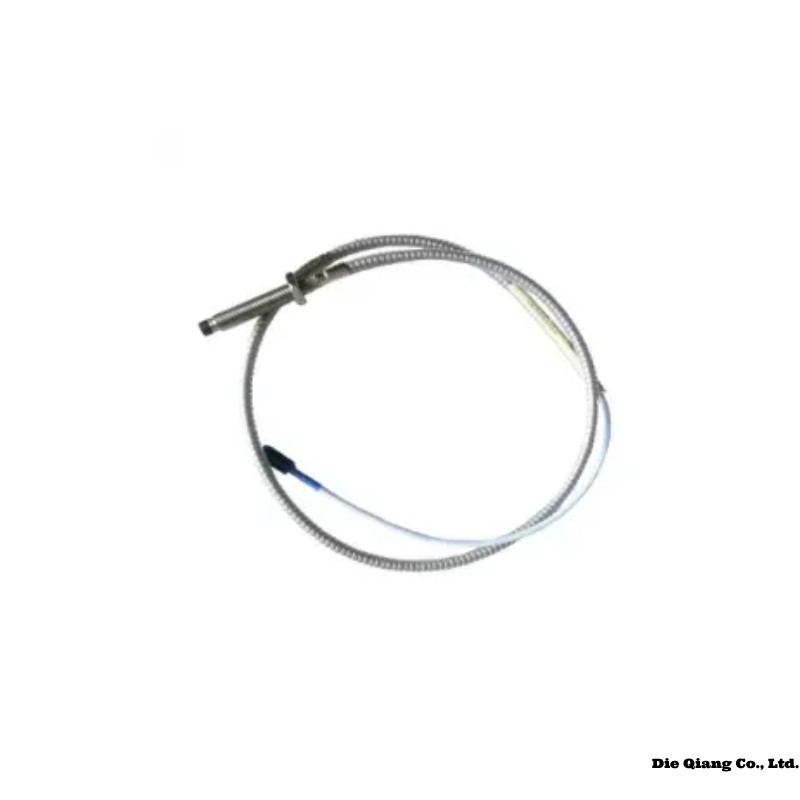

Bently Nevada 21504-000-012-05-02 5mm and 8mm Standard Mount Probe
