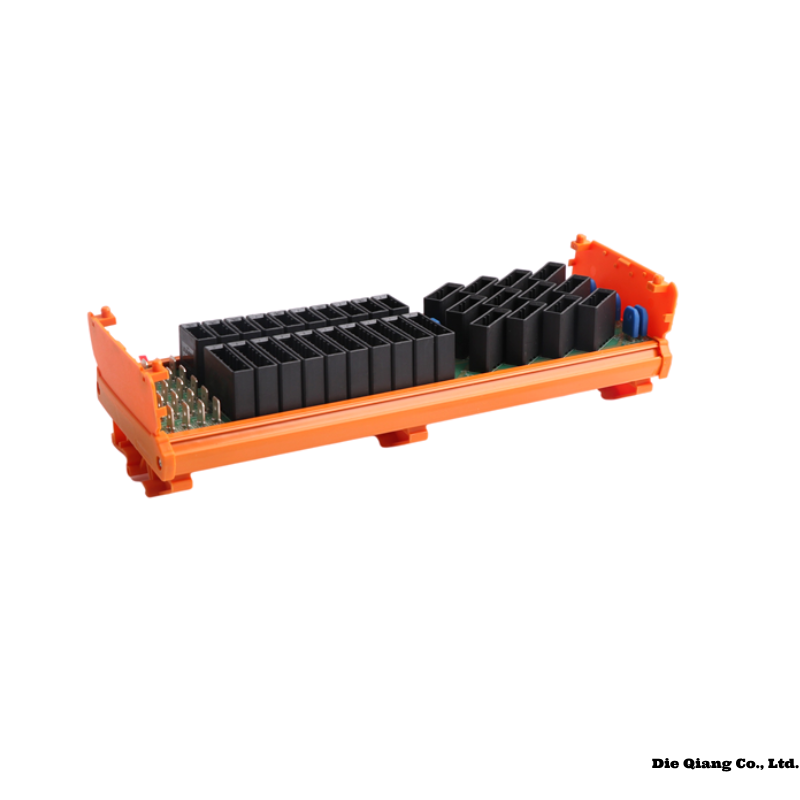

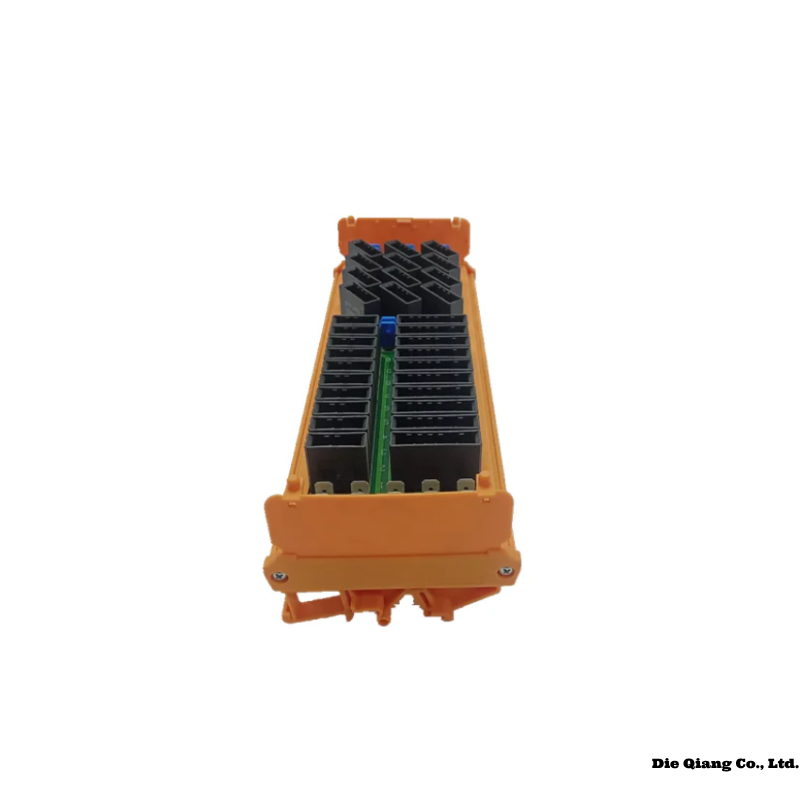

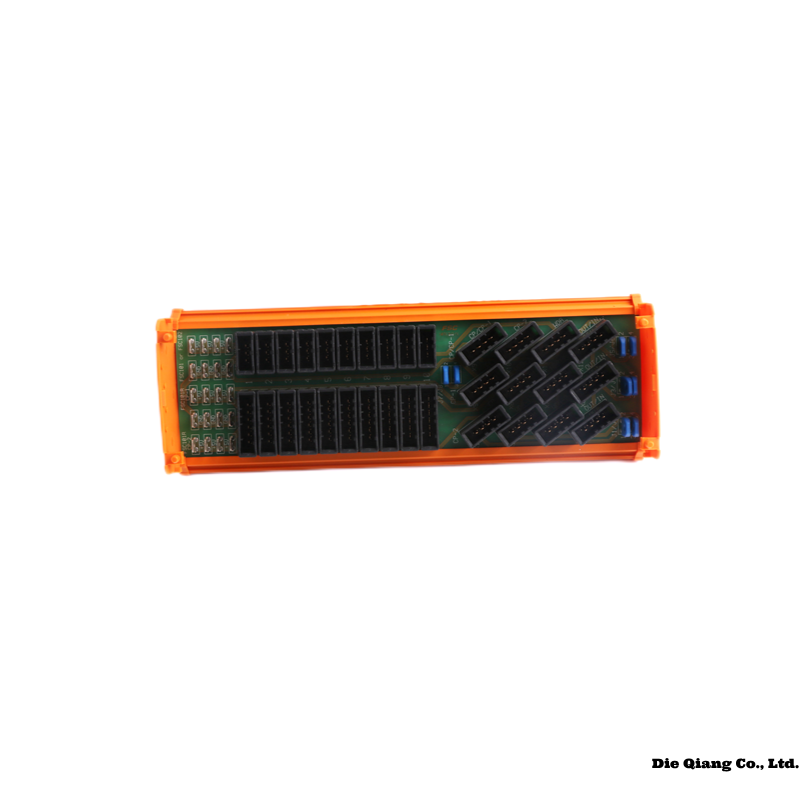

Honeywell 10313/1/1 Detailed Product Information

Product Description

The Honeywell 10313/1/1 is a high-performance industrial control module designed for mission-critical applications. This module is part of Honeywell’s robust automation and process control solutions, offering exceptional reliability, precision, and durability. It is commonly used in Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC) to facilitate seamless industrial automation.

Built with industrial-grade components, the 10313/1/1 is engineered to withstand harsh environments, making it ideal for sectors such as power generation, petrochemicals, manufacturing, and more. It features advanced communication interfaces, high-speed data processing, and strong integration capabilities with Honeywell’s automation systems.

Product Advantages

• High Reliability: Designed to operate in critical environments with minimal downtime.

• Durability: Resistant to extreme temperatures, humidity, and vibrations.

• Advanced Communication: Seamless integration with Honeywell’s control networks.

• Scalability: Can be expanded to accommodate growing industrial needs.

• User-Friendly Installation: Simplified setup process with easy-to-use configuration options.

• Industry Compliance: Meets global industrial standards for safety and efficiency.

Technical Specifications

The technical details of the Honeywell 10313/1/1 module are presented below:

Product Applications

The Honeywell 10313/1/1 module is widely used in the following industries and applications:

• Power Plants: Controls and monitors critical parameters in power generation.

• Oil & Gas: Used in process automation, safety systems, and monitoring.

• Manufacturing Plants: Ensures high precision in automated production lines.

• Chemical Processing: Provides stability and control in chemical reactions and processing.

• Water Treatment Plants: Facilitates control of pumping and treatment operations.

• Pharmaceutical Industry: Ensures accurate monitoring of production and compliance with regulations.

Compatible Models for Integration

The Honeywell 10313/1/1 is compatible with the following Honeywell models for enhanced system performance:

1. Honeywell C300 Controller

2. Honeywell 10101/2/1 I/O Module

3. Honeywell FSC 10201/2/1

4. Honeywell 10024/H/F Safety Controller

5. Honeywell 621-9932 Distributed Control Module

6. Honeywell UCN Gateway 51198947-100

Installation Instructions

1. Unpack and Inspect: Check the module for any physical damage during shipping.

2. Mounting: Securely install the module onto a DIN rail in the control panel.

3. Power Connection: Connect the 24V DC power supply, ensuring proper polarity.

4. Wiring: Connect communication cables (RS-485 or Ethernet) and input/output wiring.

5. Configuration: Use Honeywell’s configuration software to set up communication and operational parameters.

6. Testing: Perform system diagnostics to ensure proper functionality before full-scale deployment.

7. Final Integration: Connect to the main control system and validate performance.

Recommended Related Models

Below are six alternative or related models within the same series or with similar functionalities:

Popular Honeywell Models

Below are eight of Honeywell’s most popular industrial control models:

Frequently Asked Questions (FAQ)

Q1: What type of industrial systems is the Honeywell 10313/1/1 compatible with?
A1: The Honeywell 10313/1/1 is designed for use in Distributed Control Systems (DCS) and Programmable Logic Controllers (PLC), making it suitable for a wide range of automation applications.

Q2: What is the power requirement for the Honeywell 10313/1/1?
A2: The module operates on a 24V DC power supply with a power consumption of 5W.

Q3: How do I integrate the 10313/1/1 module into my existing Honeywell system?
A3: Integration is straightforward using Honeywell’s proprietary configuration software and standard communication interfaces such as RS-485 and Ethernet.

Q4: Is this module suitable for harsh industrial environments?
A4: Yes, the 10313/1/1 is designed to withstand extreme temperatures, humidity, and vibrations, making it highly reliable in harsh conditions.

Q5: What kind of maintenance does this module require?
A5: Routine maintenance includes checking for dust accumulation, ensuring secure wiring connections, and performing software diagnostics.

Q6: Can the Honeywell 10313/1/1 be used in a redundant system?
A6: Yes, it supports redundancy features to ensure continuous operation in critical applications.
