Honeywell CC-CBDD01 Product Documentation

Product Description

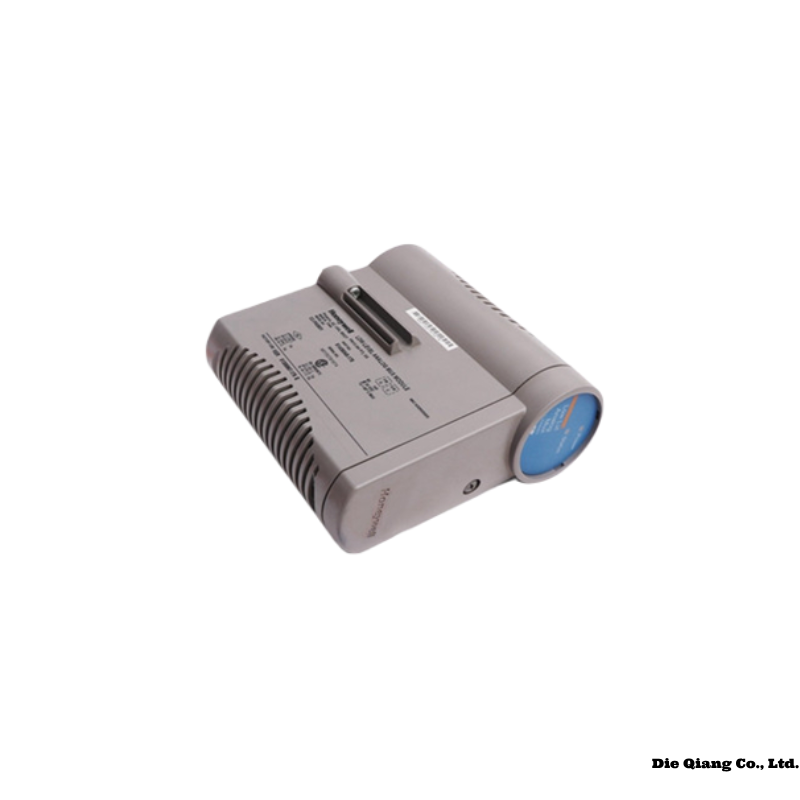

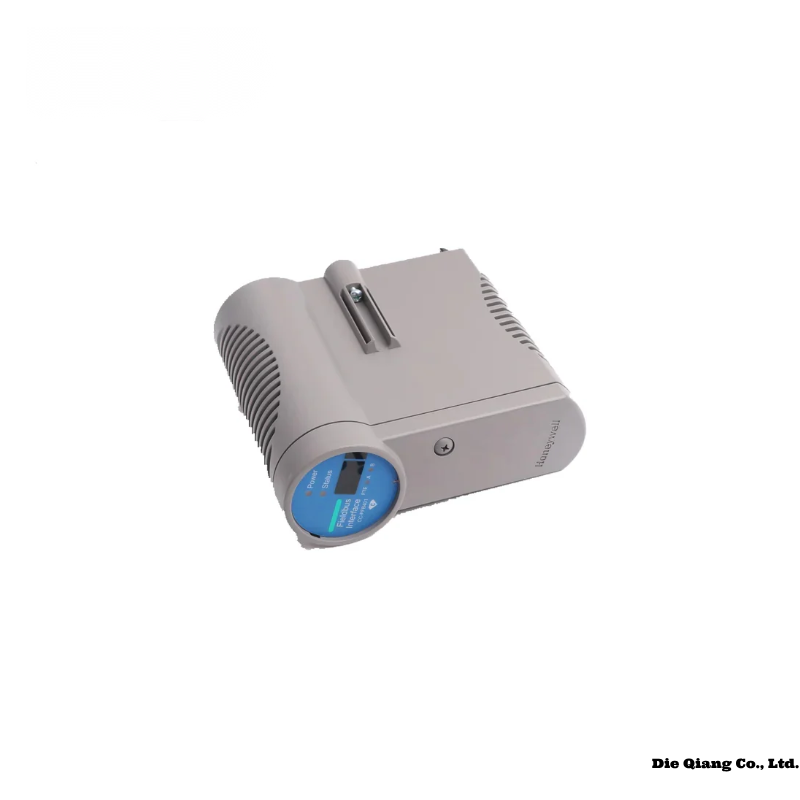

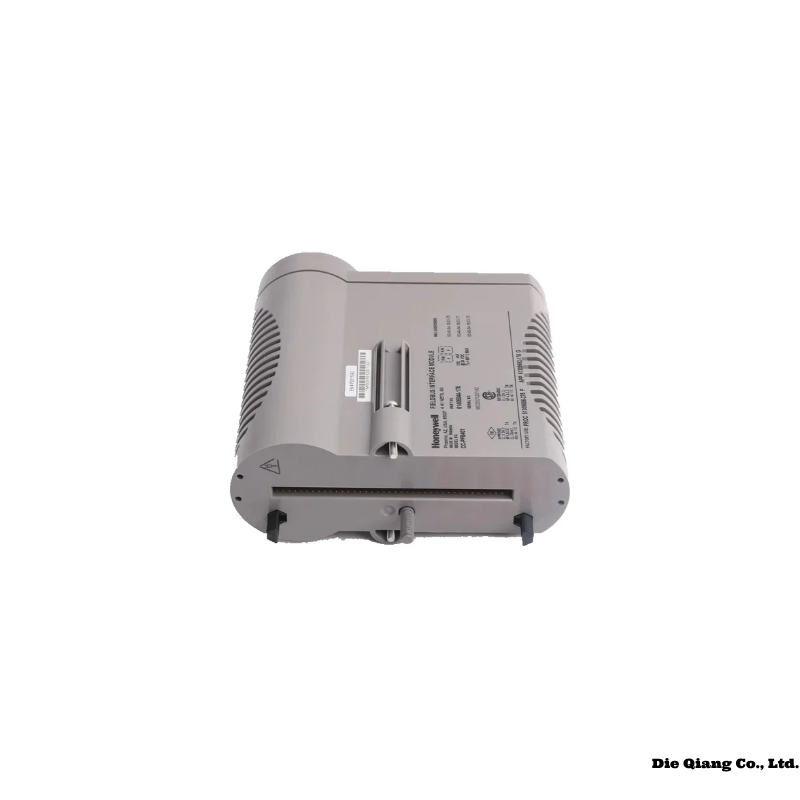

The Honeywell CC-CBDD01 is a high-performance Digital Output Module, designed specifically for use in Honeywell’s advanced distributed control systems (DCS). This module is a critical component for enabling precise control of field devices, providing reliable and safe operation in industrial environments. Engineered with superior electronics, the CC-CBDD01 ensures fast response times, accurate data transmission, and excellent durability even in harsh conditions.

This module supports multiple output channels, offering flexible control and real-time monitoring capabilities across a wide range of automation applications. Its compact design simplifies integration into control panels, while robust isolation protects against electrical disturbances, ensuring stable operation over long periods.

Ideal for industries like oil & gas, petrochemicals, power generation, and manufacturing, the Honeywell CC-CBDD01 contributes significantly to operational efficiency and system integrity.

Product Advantages

• High Reliability
  Built for continuous industrial use, the module maintains stable performance in demanding environments.

• Excellent Compatibility
  Fully compatible with Honeywell’s Experion Process Knowledge System (PKS) and other DCS architectures.

• Fast Response Time
  Offers rapid switching capabilities, ensuring precise process control and timely actions.

• Enhanced Safety Features
  Integrated protection against overvoltage, overload, and short circuits to safeguard system components.

• Compact and Modular Design
  Space-efficient, allowing for easy installation and expansion as needed.

• Reduced Maintenance Requirements
  Robust construction minimizes the need for frequent servicing, reducing operational downtime.

Technical Specifications

Product Applications

• Oil & Gas
  Automated control of drilling rigs, pipelines, and refining processes.

• Petrochemical Industry
  Enhances process safety and efficiency in chemical plants.

• Power Generation
  Controls turbine operations, boiler management, and auxiliary systems.

• Manufacturing Automation
  Facilitates precise control of production lines and assembly robots.

• Water Treatment Plants
  Supports automation of filtration, chemical dosing, and pump control.

• Pharmaceutical Production
  Ensures reliable operation of manufacturing and packaging equipment.

Compatible Models

The Honeywell CC-CBDD01 is compatible with the following systems and modules for seamless integration:

• Honeywell CC-PWRR01 Power Supply Module

• Honeywell CC-TDIL01 Digital Input Module

• Honeywell CC-PCNT01 Processor Module

• Honeywell CC-PAIH01 Analog Input Module

• Honeywell CC-PAOH01 Analog Output Module

• Honeywell CC-TDOB01 Digital Output Module

Installation Guide

1. Preparation
   Ensure the power supply is disconnected before installation. Verify that the module is free of damage.

2. Mounting
   Install the module onto a DIN rail or mount it securely onto a panel using appropriate fasteners.

3. Wiring
   Connect field wiring to the terminal block, ensuring correct polarity and secure connections. Use shielded cables for improved noise immunity.

4. System Integration
   Connect the module to the control network using the appropriate communication cables.

5. Power Up & Configuration
   Reapply power to the system. Use Honeywell’s configuration tools to assign addresses, define I/O mapping, and perform diagnostics.

6. Testing
   Run a full functional test to ensure proper operation of each output channel.

7. Finalization
   Once verified, document all connections and settings for maintenance purposes.

Recommended Related Models (Same Series)

Popular Honeywell Models

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the Honeywell CC-CBDD01 module?
A1: The Honeywell CC-CBDD01 is designed to provide digital output control for field devices in industrial automation systems, ensuring precise and reliable operations.

Q2: Can the CC-CBDD01 operate in high-temperature environments?
A2: Yes, the CC-CBDD01 operates effectively in ambient temperatures ranging from -20°C to +60°C, making it suitable for harsh environments.

Q3: Is the CC-CBDD01 compatible with Honeywell Experion PKS?
A3: Absolutely. The CC-CBDD01 is fully compatible with the Honeywell Experion Process Knowledge System and other DCS platforms from Honeywell.

Q4: What kind of field devices can be controlled using this module?
A4: The module can control a wide variety of devices such as solenoid valves, motor starters, relays, and actuators.

Q5: How should I ensure proper installation of the CC-CBDD01?
A5: Follow the installation guide strictly, ensuring correct wiring, secure mounting, and thorough functional testing before commissioning.

Q6: What is the maintenance frequency for the CC-CBDD01?
A6: Due to its robust design, the CC-CBDD01 requires minimal maintenance. Periodic inspections and system diagnostics are recommended to ensure optimal performance.
